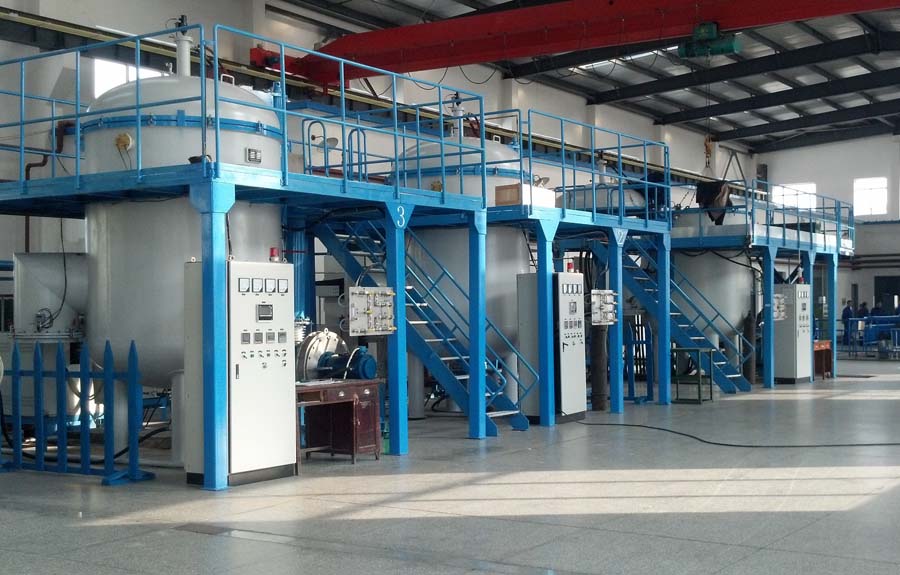

Graphitization furnace



1. Function

Carbon fiber product, C/C composite material, battery negative material, heat-

conducting graphite film high-temperature graphitization treatment.



2. Main features

3000℃ ultra-high temperature, temperature uniformity ≤10℃.

Temperature detecting accuray 0.3%,Temperature control accuracy ±1℃.

Limiting vacuum degree can be set as per technology.

The furnace gas is controllable which can be injected with nitrogen, argon,

propylene, methane.

Clean vacuum furnace desigh with professional glue discharging system.

Siemens PC monitoring which provides the most reliable safe protection.

Optimal thermal insulation material which can prolong the service life of the furnace lining.

◇ Ultra large storage capacity,providing the whole year's working data.

◇ Fast heat exchange cooling system.







        Loading area size

   (¢D×h mm)

        Rated temperature

      ( ℃ )

      Rated heating power

      ( KW )

  Rated heating frequency

      ( Hz )

    Limiting vacuum degree

      ( Pa )

              150×200               3000                       80                4000                   6.67×10-1
              200×300               3000                  100                4000                   6.67×10-1
              250×400               3000                  160                2500                   6.67×10-1
             300×500               3000                  200                2500                   6.67×10-1
             350×700               3000                  250                2500                   6.67×10-1
             400×850               3000                  300                2500                    6.67×10-1
            500×900               3000                  400                2500                    6.67×10-1
