Directional Solidification Furnace



    This product is used for solar grade silica ingot,

    it can be also used for refining other semi-conductive material.


      High control precision

      Free adjustment on crystallization speed

      The power supply is three phase current balanced

      Low maintenance cost

      High degree of vacuum

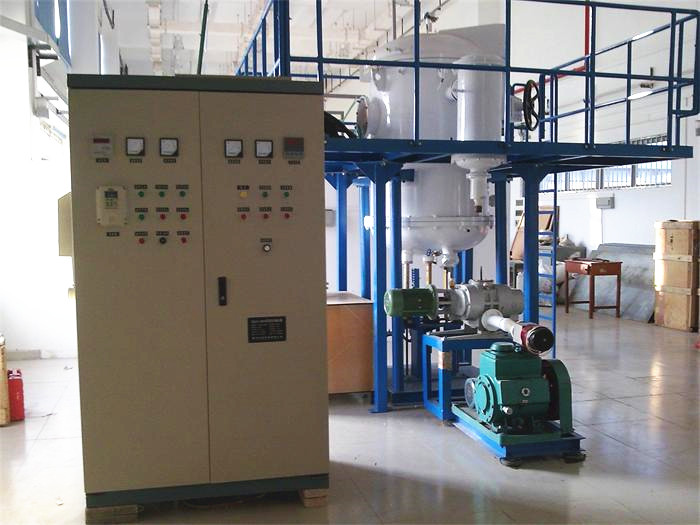

04 (1).jpg

Technical Parameter

Melting Capacity10-450KGTemperature rising rate40℃/minRated inflation pressure0.05MPa
Power 40-450KWTemperature uniformity±5℃Servo control range0.01mm-6mm/min
Designed Temperature≥1700℃Limiting vacuum6.67*10-2paDirectional solidification rate0.01mm-0.5mm/min
Working Temperature1550℃Pressure rising rate0.01PaL/SCrucible fast return speed80-100mm/min
