Shield Cutter Medium Frequency Welding Machine
Application It is used for plane hard braze welding treatment for large/medium motor rotor end-ring copper welding, magnetic polar coil connector, electronics contactor, shielding cutter, heading machine cutting pick and other work-pieces. This product is suitable for shipping industry, mine industry, railway traction motor, tunnel engineering and coal mine machinery etc. Main Property ① Adopt transistor tube induction heating power with high heating effeciency and good welding quality. ② The welding is suitable for integral welding & segment welding. ③ It can meet the heating requirement for silver-based and copper-based alloy welding material. The welding strength & electricity conductivity are both qualified. ④World's leading welding technology support which can help solve many users' welding problems. Compostion |
|

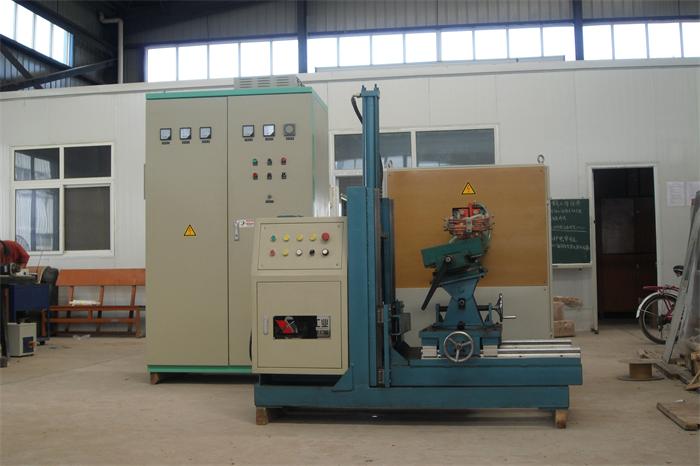

This equipment is made of transistor tube frequency inverter power supply, medium frequency welding transformer, infrared temperature detector, inductor, water cooling device and welding auxiliary lathe.
Main Technical Paramters
Model | Rated Power (KW) | Rated Frequency (KHz) | Max. Diameter (mm) | Max. Thickness (mm) | Heating Time (min) | Heating Temperature (℃) | Cooling Water Flow (t/h) |
MFMB-100 | 100 | 5-15 | ￠350 | 10-40 | ≤4 | 850 | 1.5-2 |
MFMB-160 | 160 | 6-10 | ￠550 | 10-80 | ≤4 | 850 | 1.7-2.3 |
MFMB-250 | 250 | 6-10 | ￠750 | 10-100 | ≤6 | 850 | 3-5 |
MFMB-300 | 300 | 4-10 | ￠900 | 10-100 | ≤8 | 850 | 4-6 |
MFMB-400 | 400 | 3-10 | ￠1050 | 10-120 | ≤12 | 850 | 5-7 |
MFMB-500 | 500 | 3-10 | ￠1200 | 10-150 | ≤12 | 850 | 8-10 |
MFMB-600 | 600 | 3-10 | ￠1500 | 10-200 | ≤12 | 850 | 10-12 |
Other specifications can be made as per requirement.
