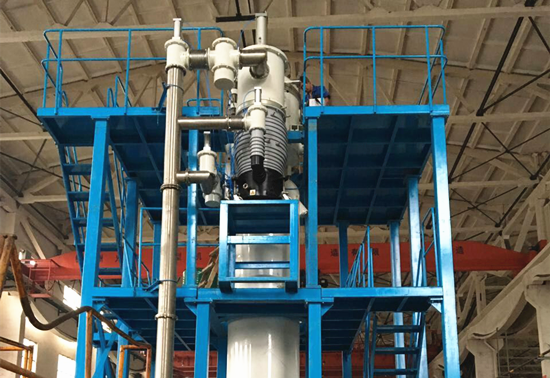

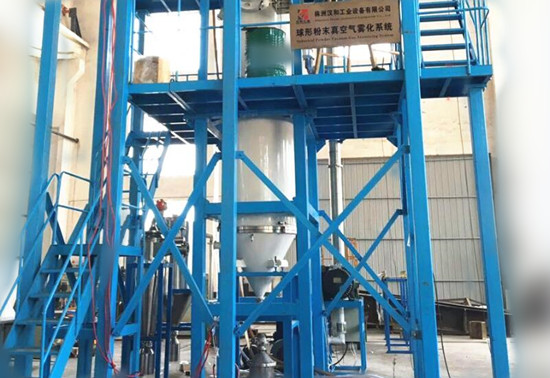

Vacuum Gas Atomizing Equipment for Metal Powders


VIGA Process Working Principle

The metal & metal alloy are melted under vacuum conditions with protective gas. The metal liquid flows through thermal insulating crucible and diversion tube to the atomizing chamber. Meanwhile, the liquid will be atomized & cracked into small droplets by high pressure air flow via tight coupling nozzle. The droplet will solidify into spherical or semi-spherical particles during falling down.




Main Technical Parameters:

Melting capacity: 20KG, 25KG, 50KG, 100KG, 200KG

MF power: 60KW, 100KW, 160KW, 250KW

MF frequency: 2500Hz

Vacuum pressure rising rate: 0.05Pa/min

Thermal preserving furnace power: 10-25KW

Thermal preserving furnace temperature: 900-1200℃

Melting furnace temperature:1800℃

Cooling tower pressure: 0.3mpa

Cooling water flow: 8-12t/h
