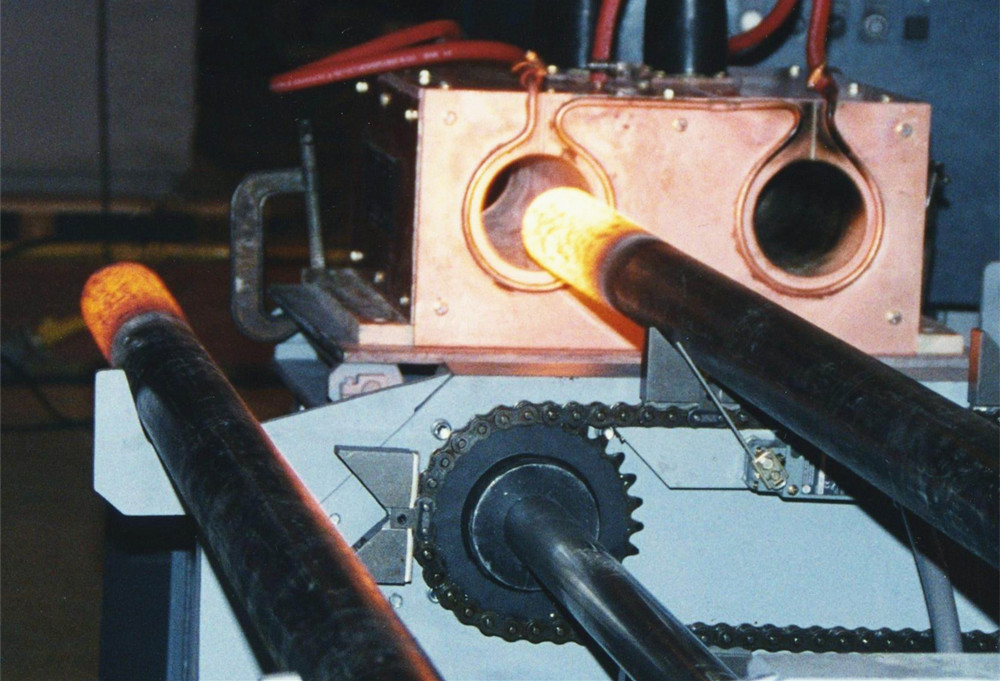

Induction Heating Furnace
Application
Heating for the whole metal material before forging, extrusion and winding. Heat treatment for the whole metal materials annealing, tempering
Features
Heating speed is fast and oxidativede-carbonzation is lower. It features in low energy consumption and pollutionlessness .
Its automation degree is higher and full-automatic unattended operation can be fulfilled.
Its heating is well-distributed and temperature controlling precision is high.
It provides the pneumatic/ hydraulic push step-by-step and roller continuous conveying artifacts way.
Provide the selectable medium-frequency induction heating power source of energy-saving IGPS series resonance transistor.
Provide computer integrated monitoring system and realize the intelligent management and production.
Specifications
Diameter (mm) | Power (KW) | Frequency (KHz) | Temperature (℃) | Heating Effeciency (KG/h)
| Electric Power Consumption (KW/h) |
5-12 | 50 | 10-40 | 200-1250 | 138 | <360 |
5-30 | 100 | 4-40 | 200-1250 | 278 | <360 |
12-40 | 160 | 4-20 | 200-1250 | 445 | <360 |
30-80 | 250 | 1-4 | 200-1250 | 698 | <360 |
50-100 | 500 | 0.5-2.5 | 200-1250 | 1388 | <360 |
80-100 | 1000 | 0.5-1 | 200-1250 | 2778 | <360 |
120-160 | >1000 | 0.2-0.5 | 200-1250 | >2778 | <360 |
