WGYC Serial CNC Control Pipe Bender

Application

Used for bending different kinds of round or square structure steel pipes, stainless steel pipes, carbon steel pipes and alloy steel pipes. The machine is widely applied in oil & gas industry, chemical engineering, metallurgy, steel constructure and boiler etc.


Main Features

Large-tonnage hydraulic or (chain type) mechanical pipe pushing, stable during the pipe bending;

Adjustable rocker arm, adapt to various types of radius adjustment;

Siemens PLC programmable control is adopted to control the adjusted radius, angle of bending and speed of pipe bending;

Siemens PLC programmable control is used to control the heating temperature and cooling flow;

PC industrial computer is used for integrated monitoring of technological parameters of the bent pipe, to guarantee the consistency of bent pipes.

Extra-large memory can store various groups of technology


Main Technical Parameters

Model

Pipe Diameter(mm)

Max Wall Thicknessmm

Max. Thrust(T)

Bending Radius

Bending Angle°

Bending Speed(mm/s)

Fast Return Speed(mm/min)

Induction Heating Power(KW)

WGYC-219

¢76-219

18/25/40

60

≥1.5D

0-180

0.3-4

1000

160

WGYC-325

¢76-325

18/25/40

70

≥2.5D

0-180

0.25-3

1000

200

WGYC-426

¢108-426

18/25/40

100

≥3D

0-180

0.2-3

1000

250

WGYC-530

¢159-529

18/25/40

120

≥3D

0-180

0.2-3

1000

300

WGYC-630

¢159-630

18/25/40

160

≥3D

0-180

0.15-2.5

1000

400

WGYC-720

¢219-720

18/25/40

180

≥3D

0-180

0.15-2.5

800

500

WGYC-830

¢219-830

18/25/40

220

≥3D

0-180

0.15-2.5

800

550

WGYC-1020

¢426-1020

18/25/40

260

≥3D

0-180

0.15-2.5

800

600

WGYC-1220

¢529-1220

18/25/40

300

≥3D

0-180

0.15-2.5

800

700

WGYC-1420

¢630-1420

18/25/40

350

≥3D

0-180

0.15-2.5

800

800


Other specifications can be customized.

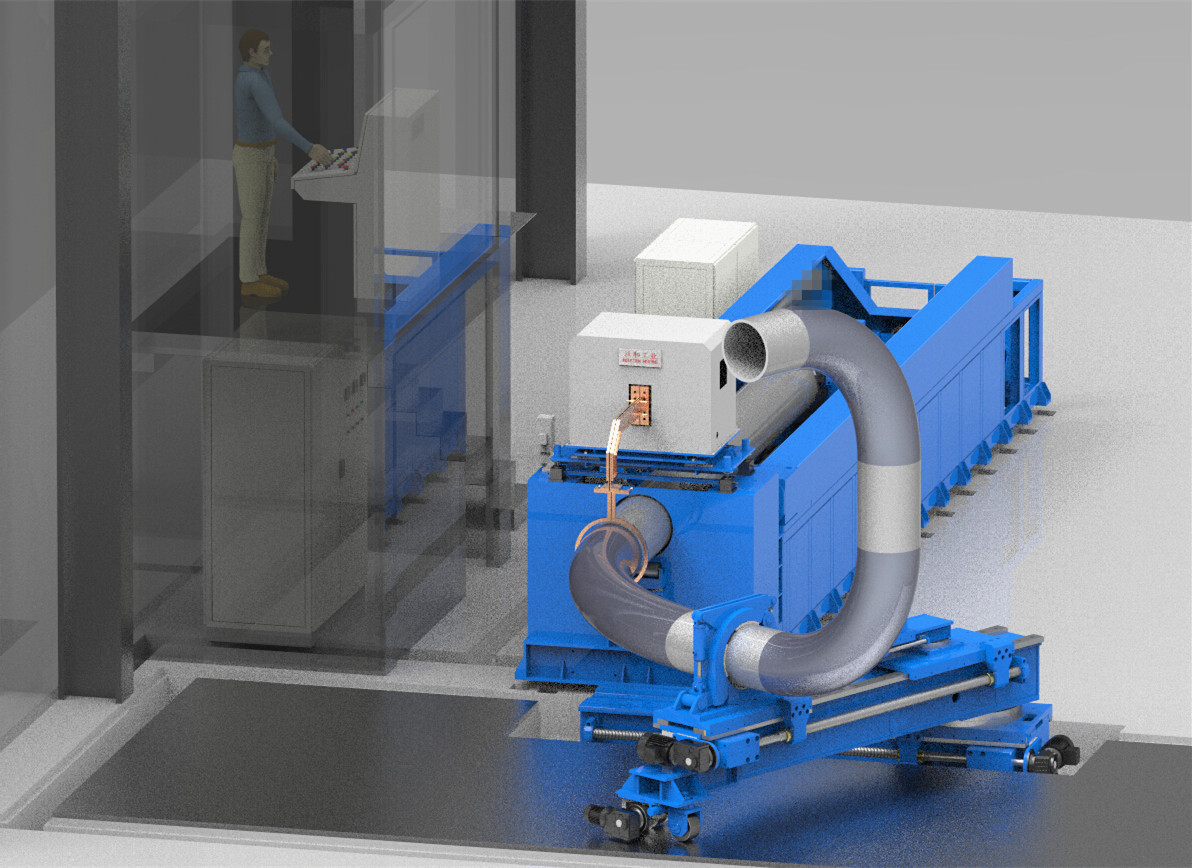

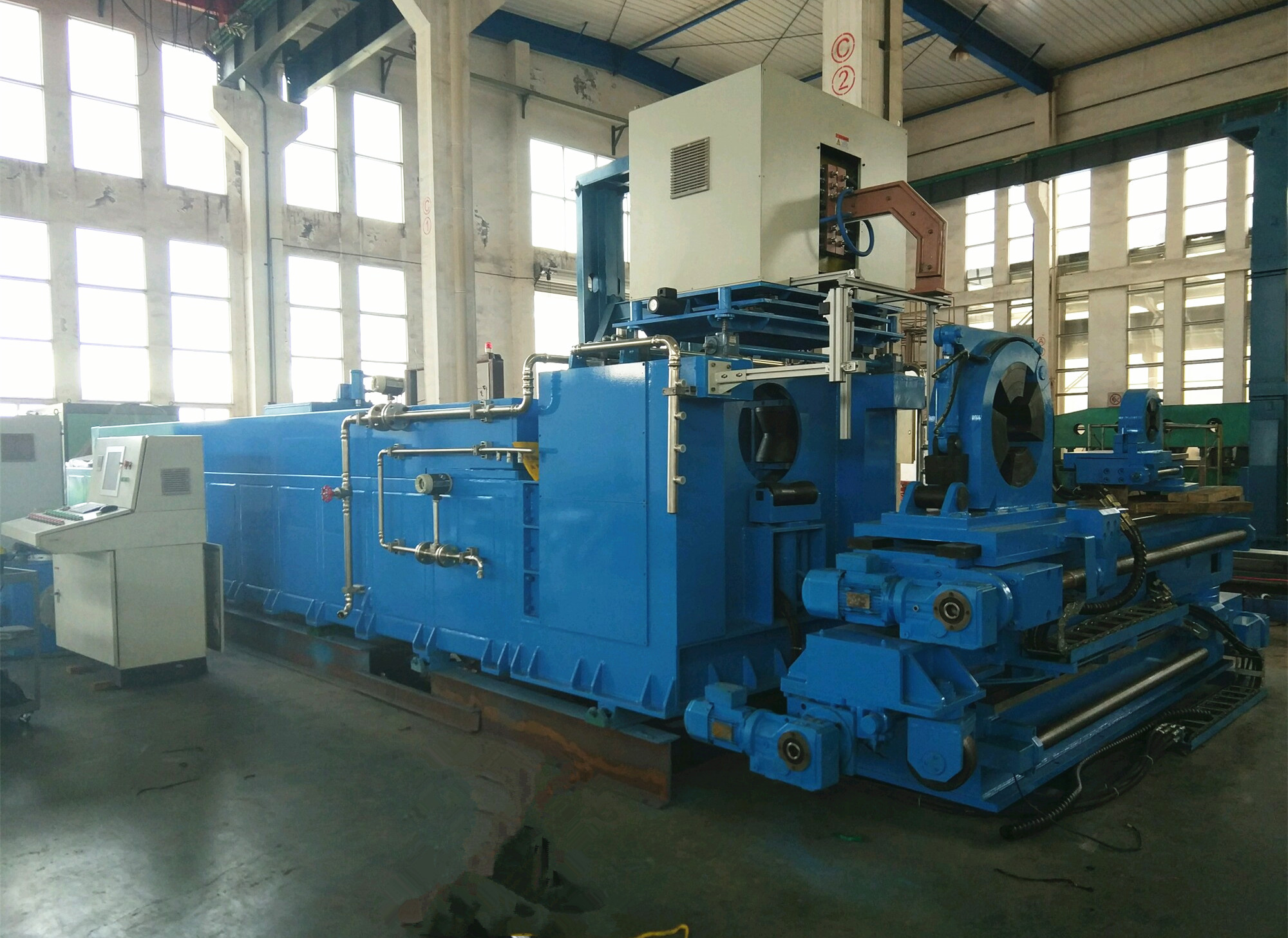

Professional Design       Production
WGYC 设计_副本.jpgWGYC-成品.jpg

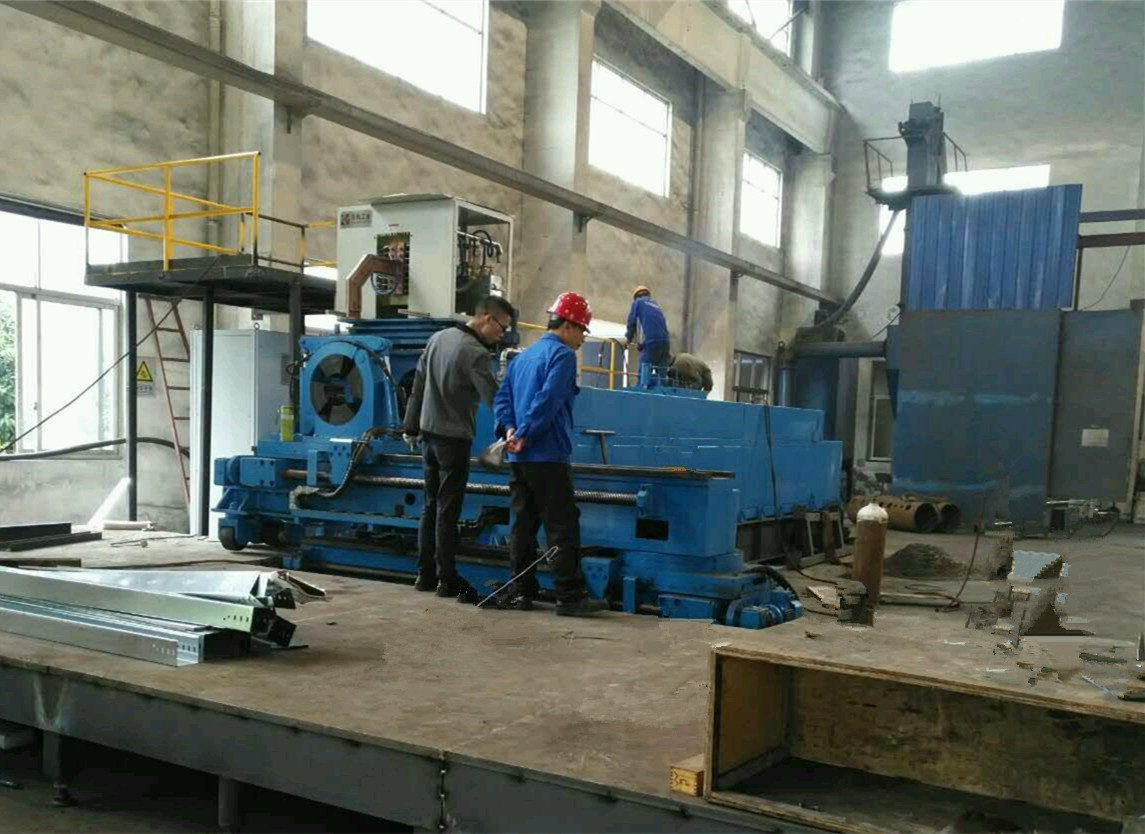

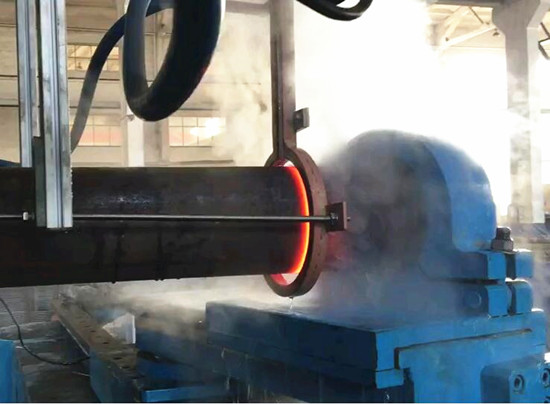

Assembly at User's Factory       Pipe Bending
