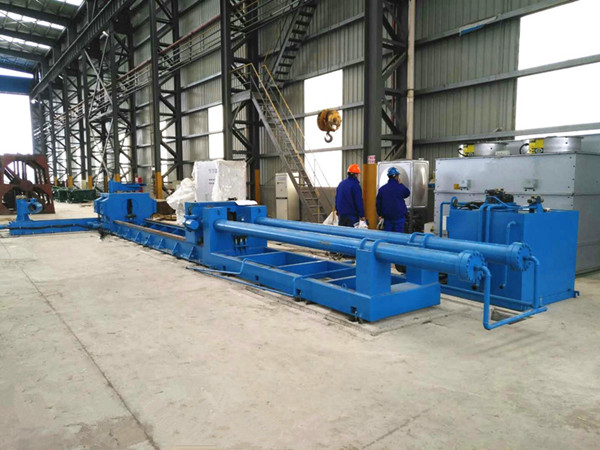

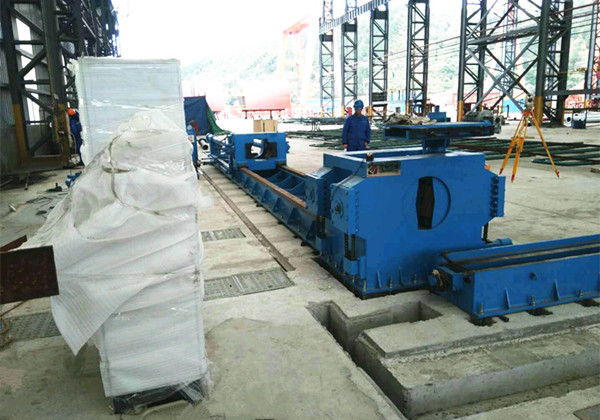

WGY Serial Cylinder Driving Hydraulic Pipe Bending Machine

Application

Used for bending different kinds of round or square structure steel pipes, stainless steel pipes, carbon steel pipes and alloy steel pipes. The machine is widely applied in oil & gas industry, chemical engineering, metallurgy, steel constructure and boiler etc.

Main Features

Large-tonnage hydraulic or (chain type) mechanical pipe pushing, stable during the pipe bending;

Adjustable rocker arm, adapt to various types of radius adjustment;

Siemens PLC programmable control is adopted to control the adjusted radius, angle of bending and speed of pipe bending;

Siemens PLC programmable control is used to control the heating temperature and cooling flow;

PC industrial computer is used for integrated monitoring of technological parameters of the bent pipe, to guarantee the consistency of bent pipes.

Extra-large memory can store various groups of technology

Main Technical Parameters

Model	Pipe Diameter(mm)	Max Wall Thickness（mm）	Max. Thrust(T)	Bending Radius	Bending Angle（°）	Bending Speed(mm/s)	Fast Return Speed(mm/min)	Induction Heating Power(KW)
WGY-219	￠76-219	18/25/40	60	≥1.5D	0-180	0.3-4	1000	160
WGY-325	￠76-325	18/25/40	70	≥2.5D	0-180	0.25-3	1000	200
WGY-426	￠108-426	18/25/40	100	≥3D	0-180	0.2-3	1000	250
WGY-530	￠159-529	18/25/40	120	≥3D	0-180	0.2-3	1000	300
WGY-630	￠159-630	18/25/40	160	≥3D	0-180	0.15-2.5	1000	400
WGY-720	￠219-720	18/25/40	180	≥3D	0-180	0.15-2.5	800	500
WGY-830	￠219-830	18/25/40	220	≥3D	0-180	0.15-2.5	800	550
WGY-1020	￠426-1020	18/25/40	260	≥3D	0-180	0.15-2.5	800	600
WGY-1220	￠529-1220	18/25/40	300	≥3D	0-180	0.15-2.5	800	700
WGY-1420	￠630-1420	18/25/40	350	≥3D	0-180	0.15-2.5	800	800

Other specifications can be customized.
