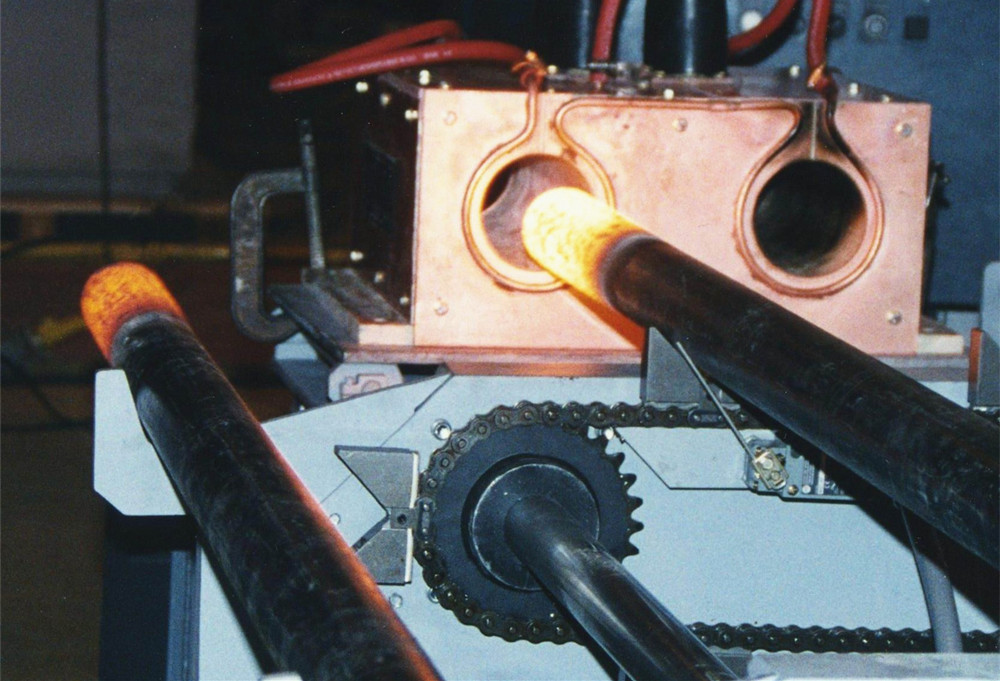

Diathermic Furnace


Application

Heating for the whole metal material before forging, extrusion and winding. Heat treatment for the whole metal materials annealing, tempering


Feature

Heating speed is fast and oxidativede-carbonzation is lower. It features in low energy consumption and pollutionlessness .

Its automation degree is higher and full-automatic unattended operation can be fulfilled.

Its heating is well-distributed and temperature controlling precision is high.

It provides the pneumatic/ hydraulic push step-by-step and roller continuous conveying artifacts way.

Provide the selectable medium-frequency induction heating power source of energy-saving IGPS series resonance transistor.

Provide computer integrated monitoring system and realize the intelligent management and production.

Diameter

(mm)

Power

(kw)

Frequency

(KHz)

Temperature

(℃)


Heating Effeciency

(kg/h)



Electric

Power Consumption

(kw/h)

5-12

50

10-40

200-1250

138

360

5-30

100

4-40

200-1250

278

360

12-40

160

4-20

200-1250

445

360

30-80

250

1-4

200-1250

698

360

50-100

500

0.5-2.5

200-1250

1388

360

80-100

1000

0.5-1

200-1250

2778

360

120-160

1000

0.2-0.5

200-1250

2778

360
