Polysilicon Directional Solidification Furnace
Application

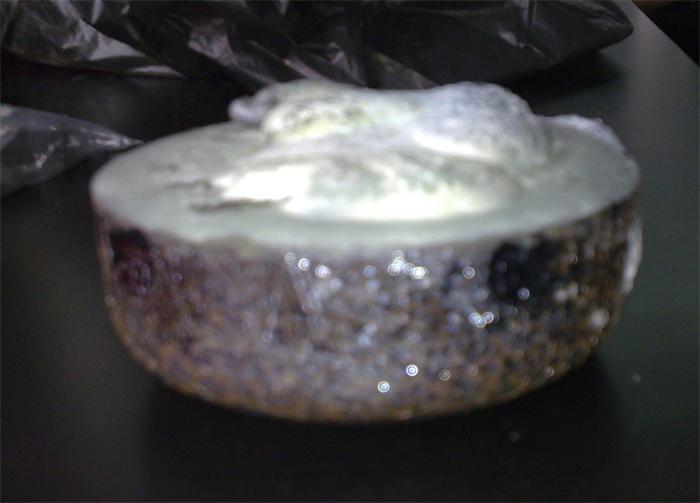

This product is used for solar grade silica ingot,
it can also used for refining other semi-conductive material.
Feature High control precision Free adjustment on crystallization speed The power supply is three phase current balanced Low maintenance cost High degree of vacuum
|  |
Technical Parameter
| Melting Capacity | 10-450KG | Temperature rising rate | 40℃/min | Rated inflation pressure | 0.05MPa |
| Power | 40-450KW | Temperature uniformity | ±5℃ | Servo control range | 0.01mm-6mm/min |
| Designed Temperature | ≥1700℃ | Limiting vacuum | 6.67*10-2pa | Directional solidification rate | 0.01mm-0.5mm/min |
| Working Temperature | 1550℃ | Pressure rising rate | 0.01PaL/S | Crucible fast return speed | 80-100mm/min |
