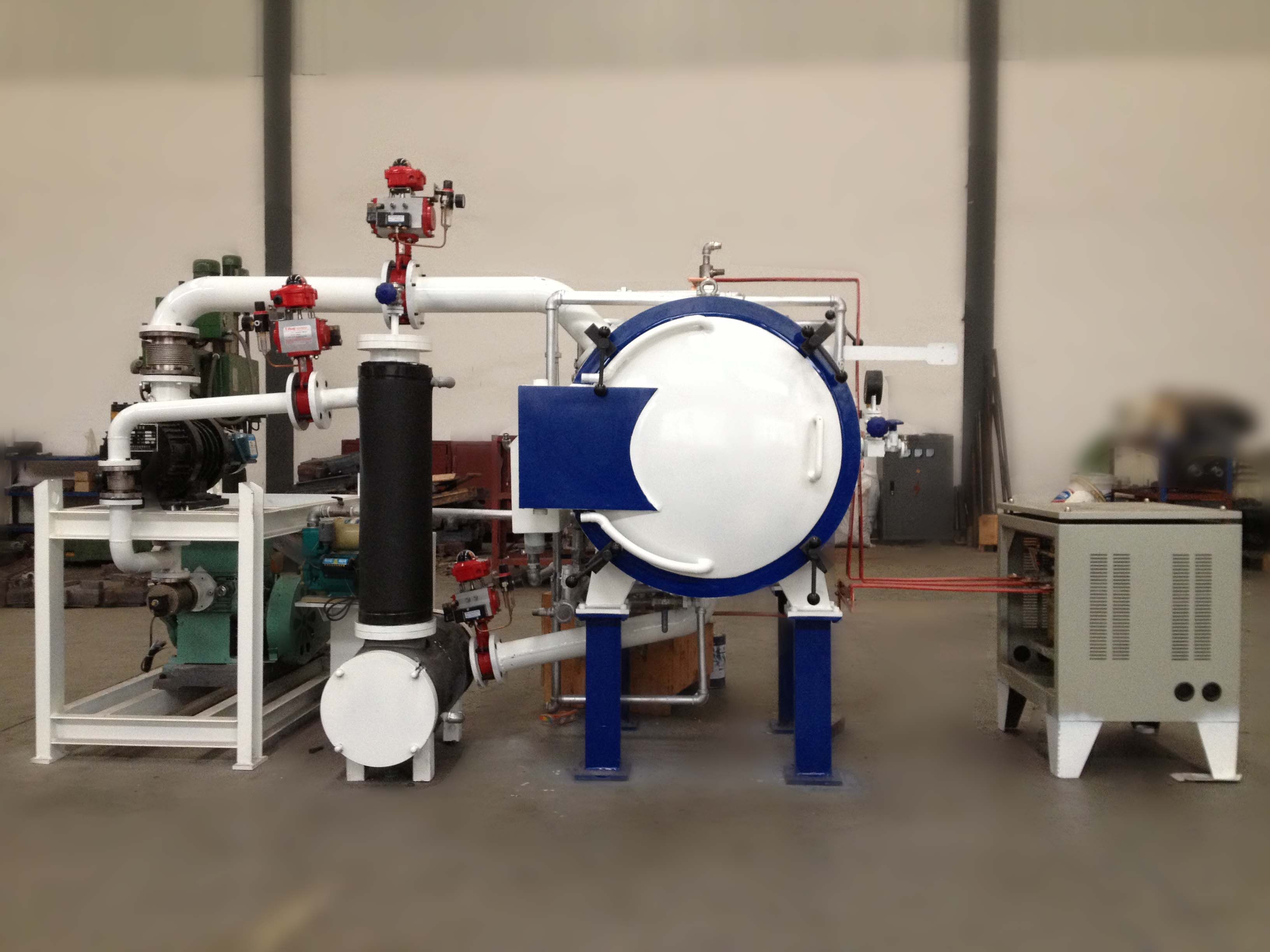

Vacuum Decoking Carbonization Multifunctional Furnace

Application

Primary vacuum negative decoking & mesotherm carbonization treatment for new heat conductive graphite film material.

                                                                                                                                                                                                  8){[36D1A3[${}@Q`7XBO_L.jpg

Feature

1600℃ high temperature, temperature uniformity less than 5℃

Temperature measuring accuracy 0.3%

Temperature control accuracy ±1

Limiting vacuum degree can be set according to technology

Atomosphere inside furnace controllable

Clean vacuum furnace design

Siemens PC computer for monitoring for reliable & reliable guard

Optimal heat preservation material to extend lining thermal layer use life

Ultra large memory for whole year working parameters records

Quick heat exchange cooling system to reduce 1/3 temperature decreasing rate




Main Technical Parameters

                 Model

     Charging Area Size

           ( mm)

        Effective Capacity

                    L

   Rated Temperature

                   ( ℃ )

         Limiting Vacuum

                  ( Pa )

THL-200

200×160×300

10

           1600/2200

3

THL-250

250×230×500

28

1600/2200

3

THL-300

300×280×600

50

1600/2200

3

THL-350

350×320×700

78

1600/2200

3

THL-400

400×380×800

122

1600/2200

3

THL-450

4542900

170

1600/2200

3

THL-500

500×480×1200

280

1600/2200

3

THL-550

550×520×1200

340

1600/2200

3

THL-600

600×500×1800

540

1600/2200

3
