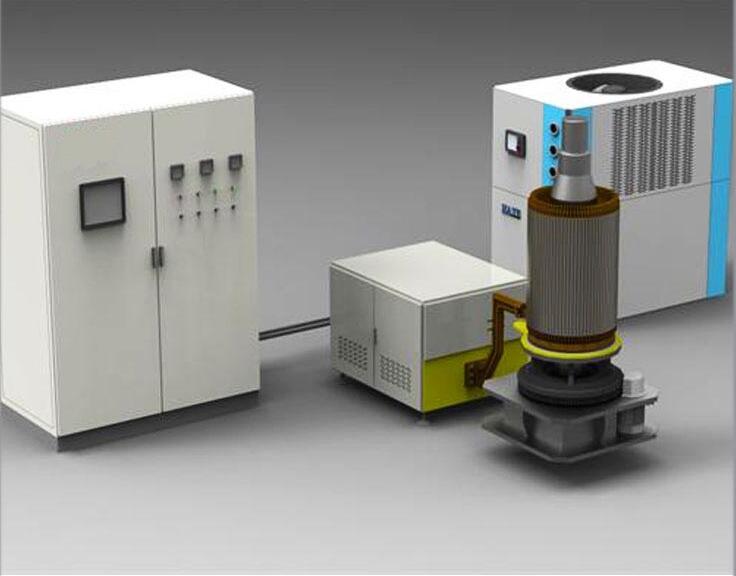

Electrical Motor Rotor End-Ring Copper Welding Machine
Composition
Feature Transistor induction heating power source is adopted, with high efficiency and good welding quality. It can meet the requirements for heating of silver-base and copper- base alloy brazing material and both the welding strength and the conductivity can meet the technological requirements. Global leading welding procedure is adopted to solve many problems regarding the welding for the users. |
|
Specifications
Model | Rated power (KW) | Max Thickness (mm) | Max. Diameter (mm) | Heating Time (min) | Heating Temperature (℃) | Water Flow (t/h) |
MFSC-100 | 100 | 10-40 | 350 | ≤4 | 850 | 1.5-2 |
MFSC-160 | 160 | 10-80 | 550 | ≤4 | 850 | 1.7-2.3 |
MFSC-250 | 250 | 10-100 | 750 | ≤6 | 850 | 3-5 |
MFSC-300 | 300 | 10-100 | 900 | ≤8 | 850 | 4-6 |
MFSC-400 | 400 | 10-120 | 1050 | ≤12 | 850 | 5-7 |
MFSC-500 | 500 | 10-150 | 1200 | ≤12 | 850 | 8-10 |
MFSC-600 | 600 | 10-200 | 1500 | ≤12 | 850 | 10-12 |
