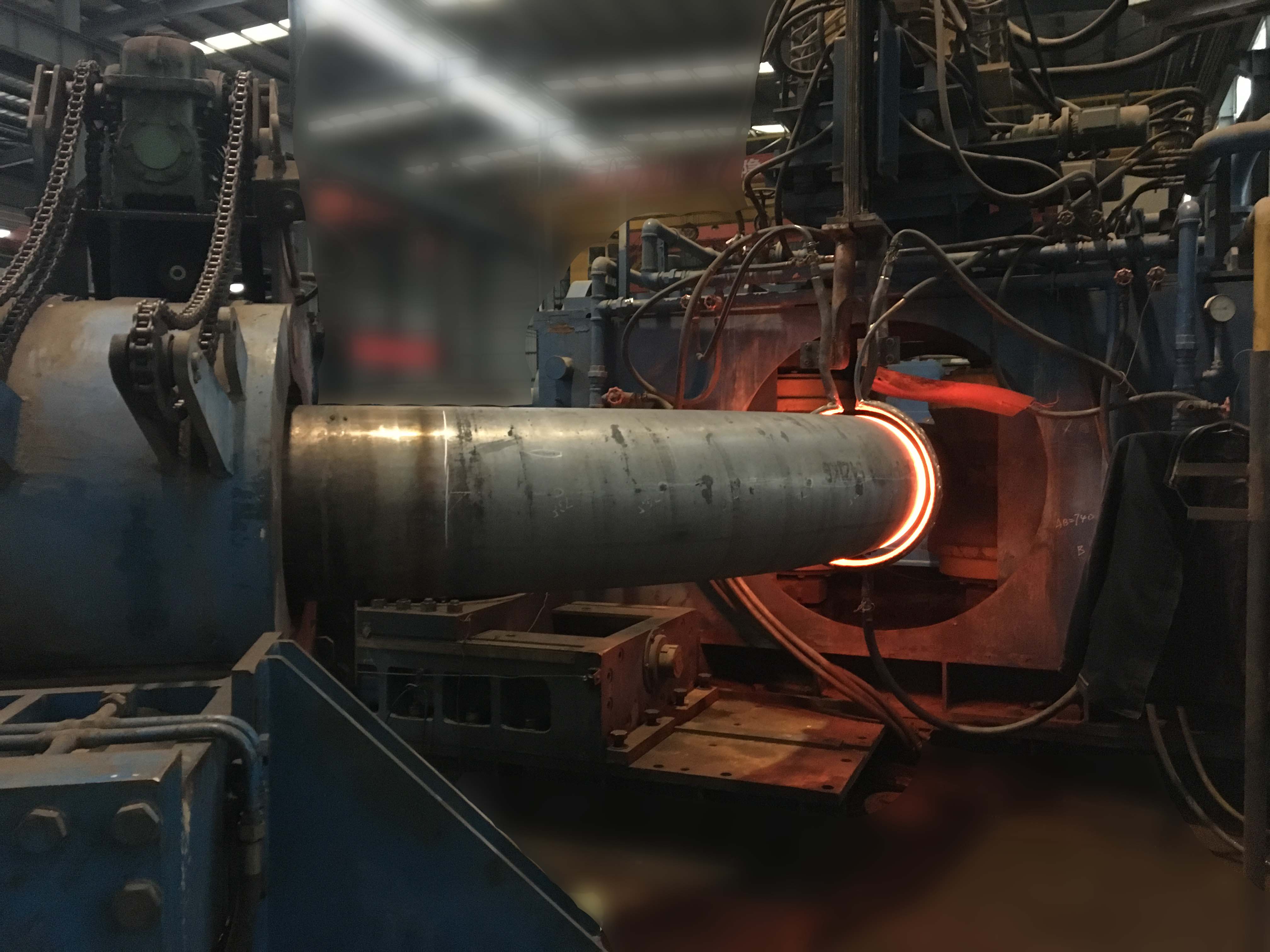

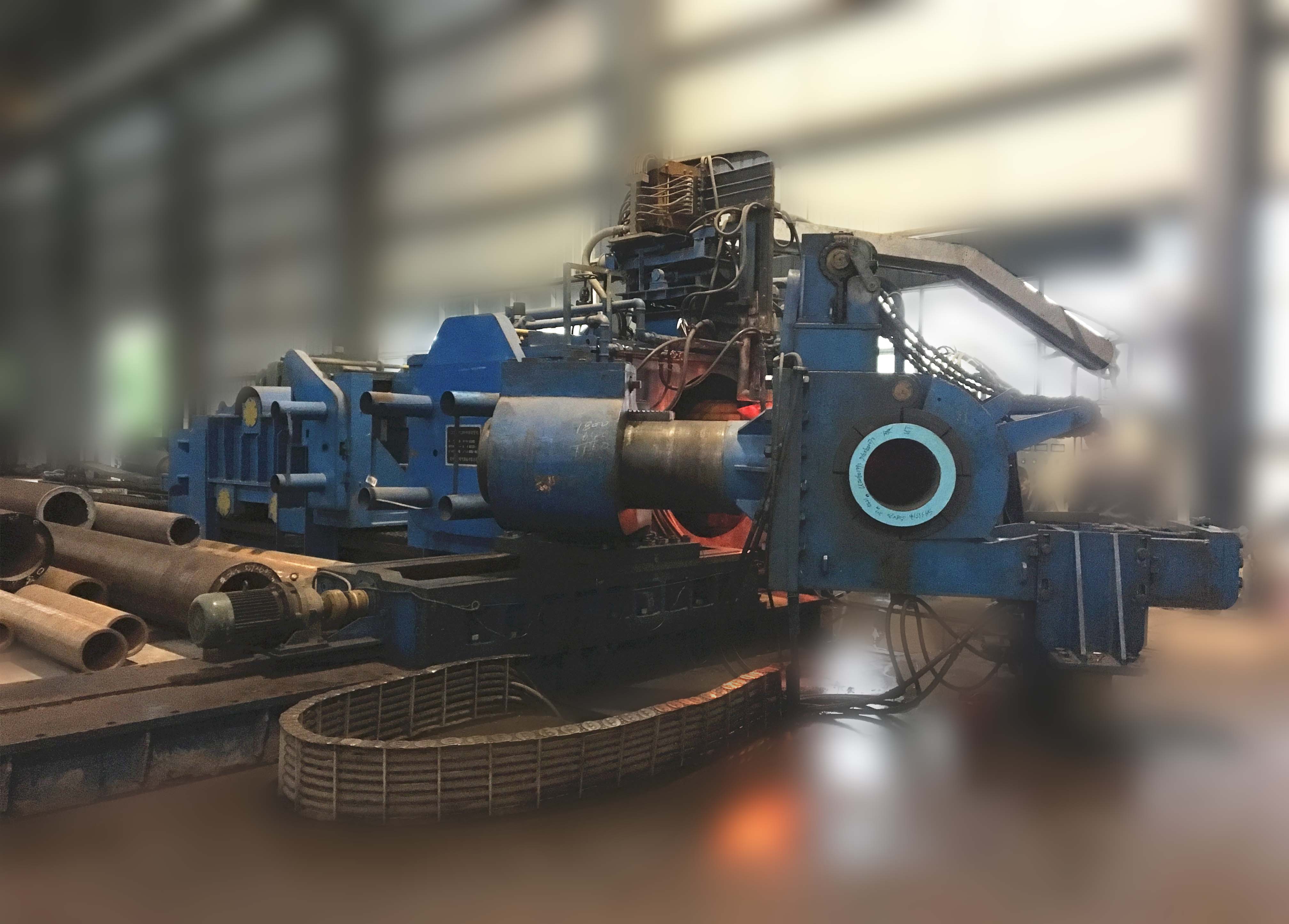

WGYB Serial Chain Driving Induction Heating Pipe Bending Machine
 |  |
Application
Used for bending different kinds of round or square structure steel pipes, stainless steel pipes, carbon steel pipes and alloy steel pipes. The machine is widely applied in oil & gas industry, chemical engineering, metallurgy, steel constructure and boiler etc.
Main Features
Large-tonnage hydraulic or (chain type) mechanical pipe pushing, stable during the pipe bending;
Adjustable rocker arm, adapt to various types of radius adjustment;
Siemens PLC programmable control is adopted to control the adjusted radius, angle of bending and speed of pipe bending;
Siemens PLC programmable control is used to control the heating temperature and cooling flow;
PC industrial computer is used for integrated monitoring of technological parameters of the bent pipe, to guarantee the consistency of bent pipes.
Extra-large memory can store various groups of technology
Main Technical Parameters
Model | Pipe Diameter(mm) | Max Wall Thickness（mm） | Max. Thrust(T) | Bending Radius | Bending Angle（°） | Bending Speed(mm/s) | Fast Return Speed(mm/min) | Induction Heating Power(KW) |
WGYB-219 | ￠76-219 | 18/25/40 | 60 | ≥1.5D | 0-180 | 0.3-4 | 1000 | 160 |
WGYB-325 | ￠76-325 | 18/25/40 | 70 | ≥2.5D | 0-180 | 0.25-3 | 1000 | 200 |
WGYB-426 | ￠108-426 | 18/25/40 | 100 | ≥3D | 0-180 | 0.2-3 | 1000 | 250 |
WGYB-530 | ￠159-529 | 18/25/40 | 120 | ≥3D | 0-180 | 0.2-3 | 1000 | 300 |
WGYB-630 | ￠159-630 | 18/25/40 | 160 | ≥3D | 0-180 | 0.15-2.5 | 1000 | 400 |
WGYB-720 | ￠219-720 | 18/25/40 | 180 | ≥3D | 0-180 | 0.15-2.5 | 800 | 500 |
WGYB-830 | ￠219-830 | 18/25/40 | 220 | ≥3D | 0-180 | 0.15-2.5 | 800 | 550 |
WGYB-1020 | ￠426-1020 | 18/25/40 | 260 | ≥3D | 0-180 | 0.15-2.5 | 800 | 600 |
WGYB-1220 | ￠529-1220 | 18/25/40 | 300 | ≥3D | 0-180 | 0.15-2.5 | 800 | 700 |
WGYB-1420 | ￠630-1420 | 18/25/40 | 350 | ≥3D | 0-180 | 0.15-2.5 | 800 | 800 |
Other specifications can be customized.
