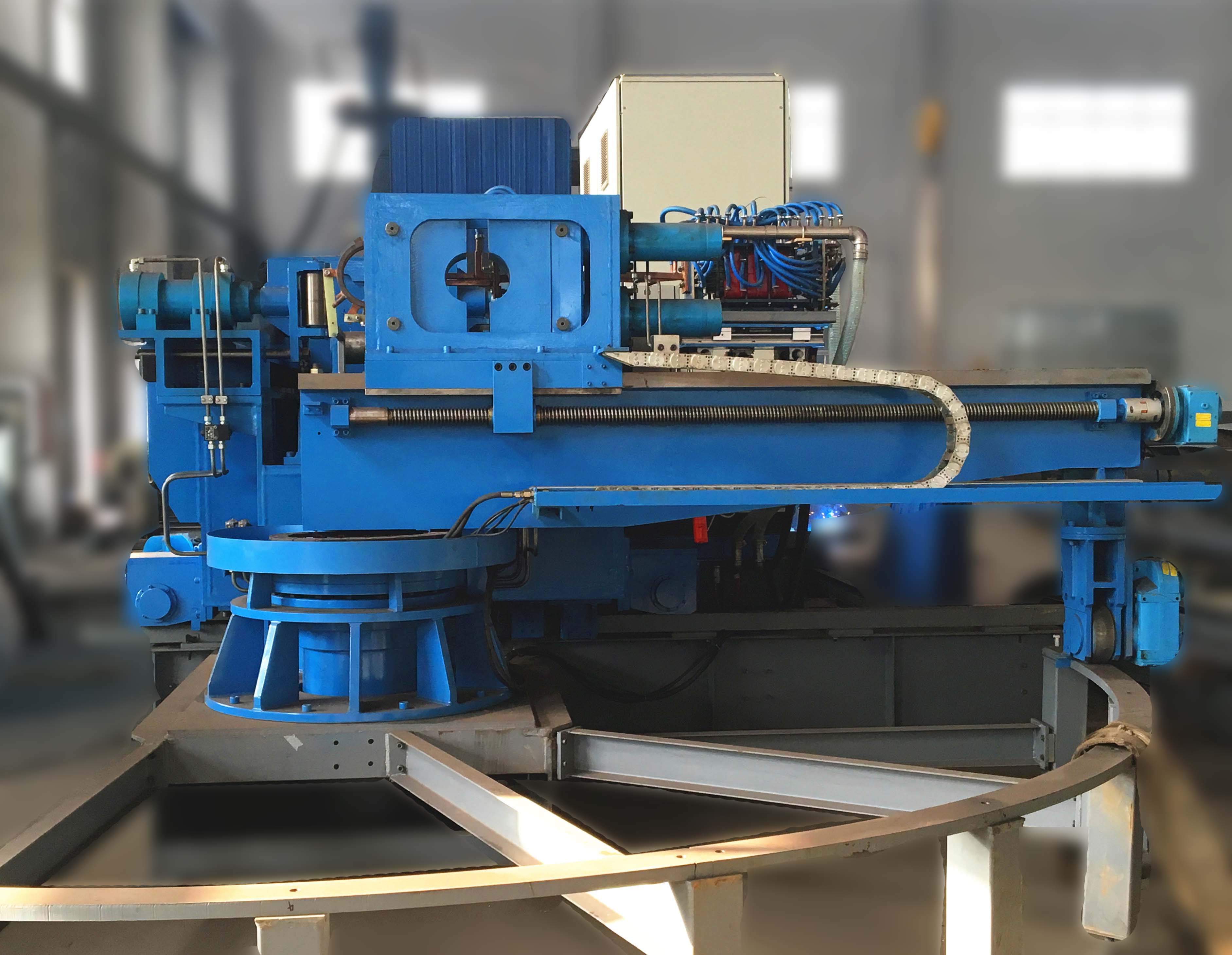

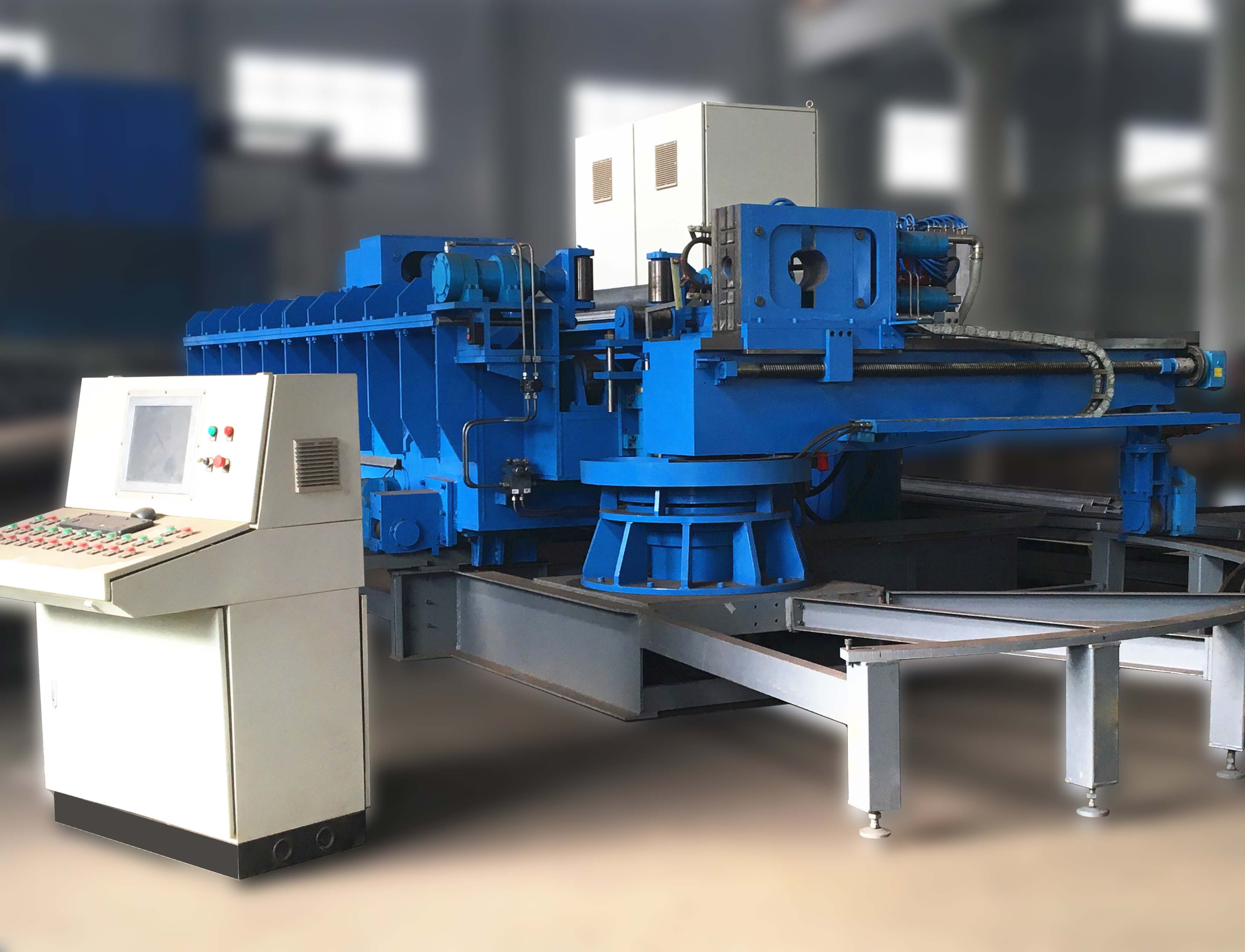

WGYD Serial Double Axles CNC Induction Heating Pipe Bending Machine
|
|
Application
Used for bending different kinds of round or square structure steel pipes, stainless steel pipes, carbon steel pipes and alloy steel pipes. The machine is widely applied in oil & gas industry, chemical engineering, metallurgy, steel constructure and boiler etc.
Main Features
Vertical lifting for loading & discharging steel pipes.
Integral processing which has great mechanical strength. Designed & actual use life can be over 50years.
Lower equipment height. Most part of the rotating center can be installed underground. Oil tube and signal cables can be well hidden.
Beautiful appearance & reasonable layout.
Main Technical Parameters
Model | Pipe Diameter(mm) | Max Wall Thickness（mm） | Max. Thrust(T) | Bending Radius | Bending Angle（°） | Bending Speed(mm/s) | Fast Return Speed(mm/min) | Induction Heating Power(KW) |
WGYD-219 | ￠76-219 | 18/25/40 | 60 | ≥1.5D | 0-180 | 0.3-4 | 1000 | 160 |
WGYD-325 | ￠76-325 | 18/25/40 | 70 | ≥2.5D | 0-180 | 0.25-3 | 1000 | 200 |
WGYD-426 | ￠108-426 | 18/25/40 | 100 | ≥3D | 0-180 | 0.2-3 | 1000 | 250 |
WGYD-530 | ￠159-529 | 18/25/40 | 120 | ≥3D | 0-180 | 0.2-3 | 1000 | 300 |
WGYD-630 | ￠159-630 | 18/25/40 | 160 | ≥3D | 0-180 | 0.15-2.5 | 1000 | 400 |
WGYD-720 | ￠219-720 | 18/25/40 | 180 | ≥3D | 0-180 | 0.15-2.5 | 800 | 500 |
WGYD-830 | ￠219-830 | 18/25/40 | 220 | ≥3D | 0-180 | 0.15-2.5 | 800 | 550 |
WGYD-1020 | ￠426-1020 | 18/25/40 | 260 | ≥3D | 0-180 | 0.15-2.5 | 800 | 600 |
WGYD-1220 | ￠529-1220 | 18/25/40 | 300 | ≥3D | 0-180 | 0.15-2.5 | 800 | 700 |
WGYD-1420 | ￠630-1420 | 18/25/40 | 350 | ≥3D | 0-180 | 0.15-2.5 | 800 | 800 |
Other specifications can be customized.
